Getting the size wrong is one of the most common — and most expensive — hydraulic system mistakes. Understanding how to size a hydraulic reservoir tank is crucial for preventing these costly errors.

Too small, and your fluid overheats. Air doesn’t deaerate properly. Contamination builds up. Your pump cavitates. What started as a sizing shortcut turns into a field failure that takes your equipment offline at the worst possible time.

Too large, and you’re carrying unnecessary weight, paying for steel you don’t need, and creating installation headaches that didn’t have to exist.

This guide walks you through the exact formula engineers use, the variables that actually move the number, and the internal design decisions that separate a tank that performs from one that just technically holds fluid. If you already know your size and need a tank built, you can jump straight to a quote →.

---

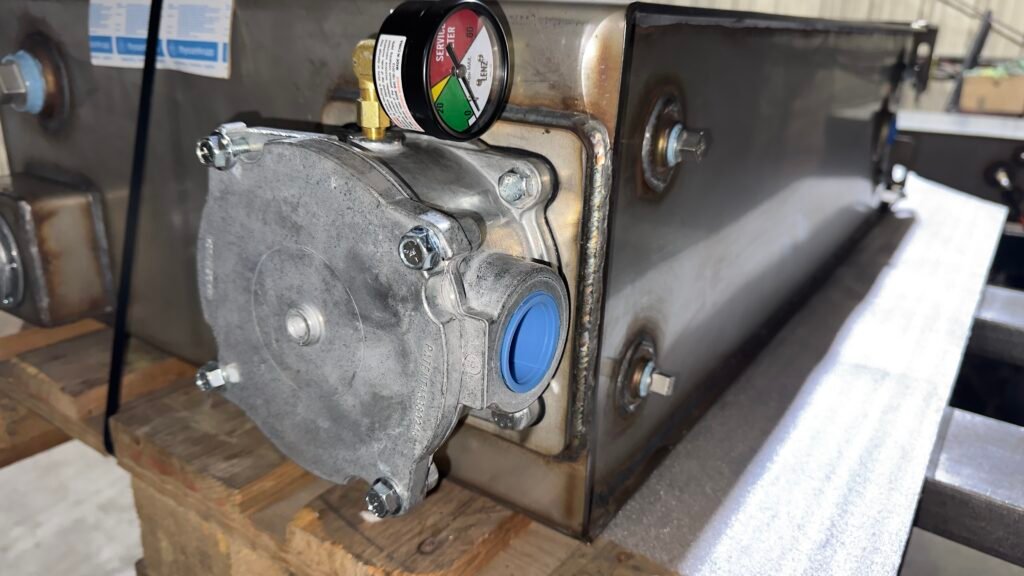

The Standard Hydraulic Reservoir Sizing Formula

The most widely used starting point for hydraulic reservoir sizing is:

Reservoir Capacity = Pump Flow Rate (GPM) × Multiplier

The multiplier depends on your application:

Application Type	Recommended Multiplier
Light duty / low heat	2× pump GPM
Standard industrial	3× pump GPM
High duty cycle / mobile	4–5× pump GPM
Continuous operation / high heat	5× pump GPM or more

Example: A 20 GPM pump in a standard industrial application needs a reservoir of at least 60 gallons (20 × 3).

This formula gives you a starting point — not a final answer. Several real-world variables will push that number up or down, and skipping them is where engineers get into trouble.

---

Use Our Free Hydraulic Reservoir Size Calculator

Enter your pump flow rate and application type for an instant recommended reservoir size, plus minimum and maximum range for your system.

Once you have your size, our team can help you spec the right port layout, steel gauge, and internal configuration. Tell us what you need →

---

Variables That Actually Affect Your Reservoir Size

1. Duty Cycle

How hard is your system working, and for how long at a stretch?

A hydraulic system that runs 30 minutes on and 30 minutes off has a completely different heat profile than one running continuously for 8 hours. High duty cycle systems generate more heat per hour, which means your reservoir needs more surface area to dissipate it — and more fluid volume to absorb heat between cycles.

For continuous-duty applications, use at least a 4–5× multiplier. For intermittent or light-duty systems, 2–3× may be adequate — but verify against your actual operating temperature, not just the formula.

2. Ambient Temperature

A reservoir in a climate-controlled factory behaves very differently from one on construction equipment running in 100°F summer heat. Higher ambient temperatures reduce your fluid’s ability to shed heat through the tank walls, which means you need more volume to compensate.

Agricultural equipment, outdoor HPUs, and mobile applications in hot climates should always size up, not down.

3. System Pressure

Higher operating pressures generate more heat. Systems running above 3,000 PSI should factor that thermal load into sizing and consider whether a heat exchanger makes more sense than simply increasing reservoir volume. Both options have tradeoffs — we cover them in our guide to custom hydraulic reservoir tank fabrication.

4. Fluid Viscosity

Thicker fluids retain heat longer. If your application requires high-viscosity fluid, your reservoir needs to work harder to manage temperature. Size your tank to keep the fluid within the operating temperature range your fluid supplier specifies — not just within the range the formula suggests.

5. Return Line Configuration

Where your return line enters the tank matters as much as how big the tank is. Return flow directed toward the suction port — without adequate baffle separation — recirculates warm, aerated fluid directly back to the pump, regardless of total volume.

A well-sized reservoir with poor internal design will still underperform. Volume and design work together, and this is where working with an experienced fabricator pays off. See how we approach internal design →

---

Minimum Internal Design Requirements

Beyond capacity, these design elements determine whether your tank performs at its rated size or just looks like it should:

Suction and return port separation — Ports should be on opposite sides of the baffle plate, separated by a minimum of 3× the suction pipe’s outside diameter. This prevents warm return fluid from short-circuiting directly to the pump inlet.

Headspace allowance — Never fill a reservoir to 100% capacity. Leave 10–15% headspace for thermal expansion and the volume changes caused by cylinder extension and retraction. If a tank is sized correctly but filled to the top, it’ll overflow under normal operation.

Baffle plate placement — The baffle separates return flow from suction flow, giving fluid time to release entrained air and settle contaminants before it recirculates. Without a properly positioned baffle, even a generously-sized reservoir won’t deaerate effectively.

Suction port height — Position the suction port 1.5–2× pipe diameter above the tank floor. This avoids drawing settled contamination directly into the pump — a common cause of premature pump wear that has nothing to do with reservoir size.

Maintenance access — Drain plugs, clean-out covers, and inspection access need to be designed in at fabrication. A tank that can’t be properly cleaned or inspected is a maintenance liability from day one. Our hydraulic tank fabrication services include all of these as standard — not bolt-on options.

---

5 Hydraulic Reservoir Sizing Mistakes That Cause Field Failures

Mistake #1: Treating the formula as the final answer

The 3× rule assumes average conditions — standard duty cycle, moderate ambient temperature, typical pressure. The moment your application deviates from average in any direction, your sizing needs to adjust with it. The formula is a starting point for a conversation, not a spec to cut steel from.

Mistake #2: Ignoring heat load from external sources

In mobile equipment, engine heat, direct sun exposure, and proximity to exhaust can add significant thermal load to your hydraulic fluid — none of which shows up in a pump-flow-based calculation. Thermal modeling or field measurement is the only accurate approach for these applications.

Mistake #3: Sizing down to fit a space constraint

If your machine envelope won’t accommodate the reservoir size your system actually needs, the answer isn’t to use a smaller tank — it’s to add a heat exchanger, adjust the duty cycle, or redesign the layout. A layout that requires creative tank geometry is a fabrication challenge we solve every week. A tank that’s too small will fail your system eventually. Talk to our engineering team →

Mistake #4: Ignoring cylinder displacement

Every time your cylinders extend, they pull fluid from the reservoir. When they retract, they return it. The volume swing needs to be within your reservoir’s safe operating range — not cause it to overflow at full retraction or run dangerously low at full extension. Calculate your total cylinder displacement and verify your reservoir handles the full range.

Mistake #5: Skipping the internal design conversation with your fabricator

Tank size and tank design are two different things. A 60-gallon reservoir with proper baffling, correct port placement, and a well-positioned return diffuser will outperform an 80-gallon tank with none of those features. When you’re sourcing a custom hydraulic reservoir tank, don’t just spec the capacity — spec the internals.

---

When the Standard Formula Isn’t Enough

Some applications require more than a multiplier calculation:

High-cycle press applications — Rapid, repeated cylinder movement generates heat faster than most formulas anticipate. Thermal analysis is strongly recommended before finalizing reservoir size.

Arctic or cold-climate operations — Cold fluid is thick fluid. Startup viscosity, warm-up time, and cavitation risk during cold starts all need to be part of the sizing conversation — not afterthoughts.

Mobile equipment with weight constraints — When you can’t add reservoir volume, a heat exchanger is usually the answer. A smaller, well-cooled reservoir outperforms a larger, uncooled one in high-heat applications. We can help you evaluate both options. Get in touch →

Integrated chassis tanks — When the reservoir is part of the machine structure, sizing is constrained by the chassis envelope. Fabricators who engage during the design phase — not just when the drawing is complete — deliver better outcomes and fewer expensive revisions.

---
